SSH Port Forwarding and services

Use this page for tunnel + ssh -L forwarding to Crime services.

Contents

Prerequisites

  • Azure CLI installed and authenticated (az login).
  • Access to Bastion resource, target VM, and VM NIC.
  • SSH private key present locally.
  • General SSH working via Bastion. See General SSH use first.
  • Target VM must have network path to the downstream service (Postgres, Artemis, Gerrit).

Pattern

  1. Open Bastion tunnel to target VM SSH port.
  2. Open SSH session to local tunnel endpoint.
  3. Forward service port with -L.

Base tunnel command:

az network bastion tunnel \
  --name "<BASTION_NAME>" \
  --resource-group "<BASTION_RESOURCE_GROUP>" \
  --target-resource-id "<TARGET_VM_RESOURCE_ID>" \
  --resource-port 22 \
  --port <LOCAL_TUNNEL_PORT>

Example: Artemis admin UI

Open tunnel:

az network bastion tunnel \
  --name VN-MDV-DMZ-01-bastion \
  --resource-group RG-MDV-DMZ-01 \
  --target-resource-id "/subscriptions/e6b5053b-4c38-4475-a835-a025aeb3d8c7/resourceGroups/RG-MDV-INT-01/providers/Microsoft.Compute/virtualMachines/MDVCREV01.cpp.nonlive" \
  --resource-port 22 \
  --port 2022

Forward Artemis admin port:

ssh -p 2222 <ENTRA_USERNAME>@localhost -L 8161:localhost:8161

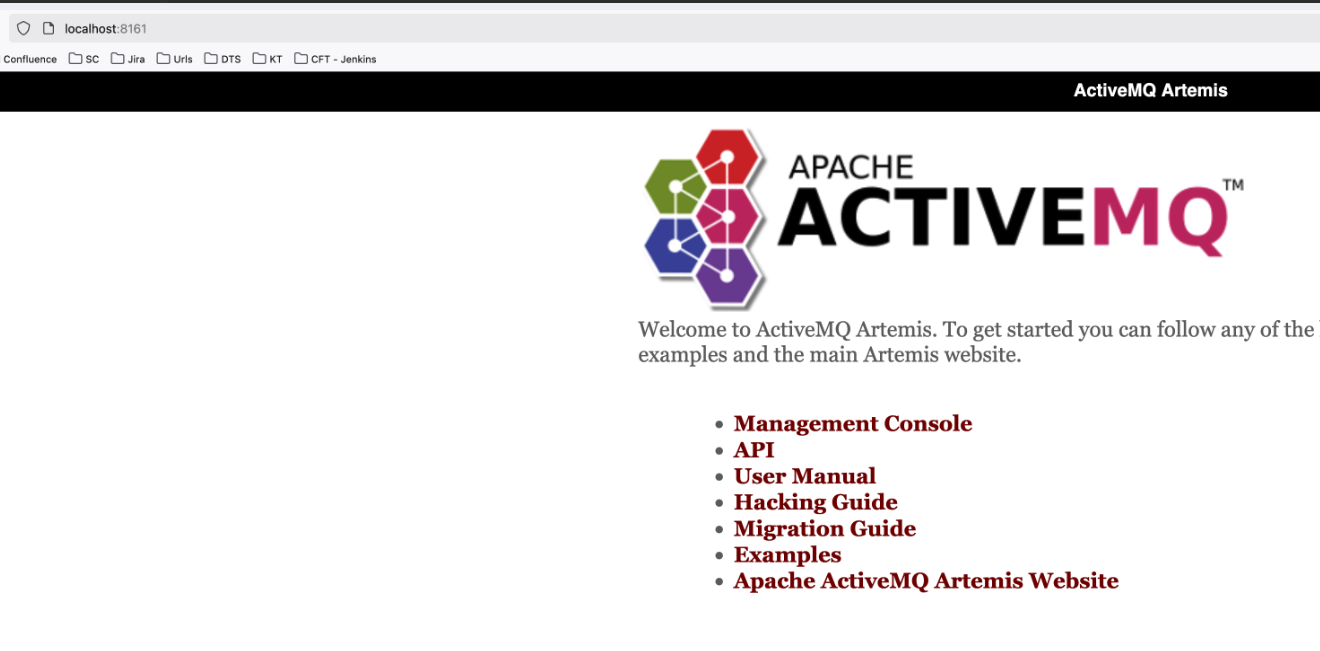

Browse:

http://localhost:8161

alt text

Example: Postgres PaaS

Open tunnel:

az network bastion tunnel \
  --name VN-MDV-DMZ-01-bastion \
  --resource-group RG-MDV-DMZ-01 \
  --target-resource-id "/subscriptions/e6b5053b-4c38-4475-a835-a025aeb3d8c7/resourceGroups/RG-MDV-INT-01/providers/Microsoft.Compute/virtualMachines/MDVCREV01.cpp.nonlive" \
  --resource-port 22 \
  --port 2022

Forward Postgres from reachable VM:

ssh -p 2022 \
  -i ~/.ssh/id_rsa \
  <ENTRA_USERNAME>@localhost \
  -L 5432:<POSTGRES_FQDN>:5432 \
  -N

Connect locally:

psql -h localhost -U <DB_USERNAME> -d <DB_NAME>

Example: Gerrit over SSH

Open tunnel to Bastion:

az network bastion tunnel \
  --name VN-MDV-DMZ-01-bastion \
  --resource-group RG-MDV-DMZ-01 \
  --target-resource-id "/subscriptions/e6b5053b-4c38-4475-a835-a025aeb3d8c7/resourceGroups/RG-MDV-INT-01/providers/Microsoft.Compute/virtualMachines/MDVCREV01.cpp.nonlive" \
  --resource-port 22 \
  --port 2022

Port Forward Gerrit endpoint:

ssh -vvv -p 2022 \
  -i ~/.ssh/id_rsa \
  <ENTRA_USERNAME>@localhost \
  -L 29418:coderepo.mdv.cpp.nonlive:29418 \
  -N

Git clone

Clone Gerrit repo through the forwarded local port:

git clone ssh://<ENTRA_USERNAME>@localhost:29418/<REPO_NAME>

Expected output:

Cloning into '<REPO_NAME>'...
Warning: Permanently added '[localhost]:29418' (ED25519) to the list of known hosts.
remote: Counting objects: 615, done
remote: Total 145114 (delta 0), reused 145114 (delta 0)
Receiving objects: 100% (145114/145114), 42.19 MiB | 11.96 MiB/s, done.
Resolving deltas: 100% (33188/33188), done.

Git Push

Create a branch and push:

git checkout -b <FEATURE_BRANCH>
git push

If the branch has no upstream set, the first push will fail with:

fatal: The current branch <FEATURE_BRANCH> has no upstream branch.
To push the current branch and set the remote as upstream, use

    git push --set-upstream origin <FEATURE_BRANCH>

Set upstream and push:

git push --set-upstream origin <FEATURE_BRANCH>

Expected output:

Total 0 (delta 0), reused 0 (delta 0), pack-reused 0 (from 0)
remote: Processing changes: refs: 1, done
To ssh://localhost:29418/<REPO_NAME>
 * [new branch]          <FEATURE_BRANCH> -> <FEATURE_BRANCH>
branch '<FEATURE_BRANCH>' set up to track 'origin/<FEATURE_BRANCH>'.

Closing sessions

  • Ctrl + C in tunnel terminal closes Bastion tunnel.
  • Ctrl + C in forwarding SSH terminal stops local port forward.
  • Close browser tabs or tools using forwarded localhost endpoints.

Verification

For each service, confirm connectivity from your local machine after the forward is open:

  • Artemis — open http://localhost:8161 in a browser. The Artemis admin login page should load.
  • Postgres — run psql -h localhost -U <DB_USERNAME> -d <DB_NAME>. A psql prompt should appear.
  • Gerrit — run git clone ssh://<ENTRA_USERNAME>@localhost:29418/<REPO_NAME>. Clone progress should start.

If the local port is open but no response comes, the forward is running but the path from the target VM to the service is blocked. See Troubleshooting for NSG and routing checks.
