Step 10: Configure SSH

In this step, you will setup your SSH config so that you are able to connect via SSH to Crime resources (such as VMs) and clone Gerrit repositories.

Setup your SSH Config

Option A: Run self-service script (Recommended)

Run self-service script in your terminal:

./self-service/run.sh ssh

This script will:

Backup your old SSH config file to ~/.ssh/config.backup.<date>
Create a new Crime SSH config file at ~/.ssh/config using template filled in with your username and HMCTS email
Create Control Master directory at ~/.ssh/cm/

Option B: Manual Configuration

Copy and paste contents of the following template into your ~/.ssh/config file and update the placeholders with your specific values.

Ensure that you create ~/.ssh/cm/ directory for SSH Control Master sockets.

Place your private SSH key

Ensure your private SSH key (generated in Step 1) is placed in your ~/.ssh/ directory with correct permissions:

mv <PATH-TO-YOUR-PRIVATE-SSH-KEY> ~/.ssh/id_rsa
chmod 600 ~/.ssh/id_rsa

SSH into a VM

If you have been granted access to SSH into any VMs this is a good time to test this:

ssh <VM-HOSTNAME>
> when prompted enter the authenticator code - you can use the alias you created in Step 7 to generate it
> when prompted enter your Crime Azure Portal password

View and clone Gerrit code repositories

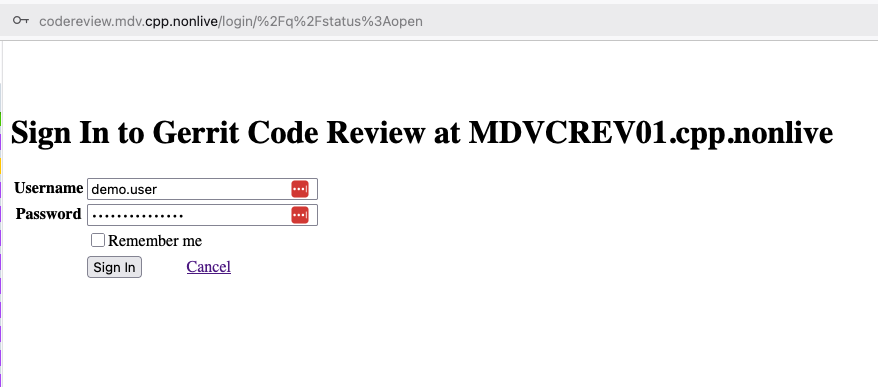

Once you can access Gerrit you should be able to login using your Crime Azure AD credentials for the account you setup in earlier steps:

Username: name.surname part of your Crime email
Password: Your Crime Azure Portal password

📋 View screenshot: Gerrit login

Add your public SSH key to Gerrit

Click on the cog icon on the top right, settings page will open
On the left menu click SSH Keys
Under SSH Keys in New SSH key field paste in your public SSH key and click ADD NEW SSH KEY
Ensure you are using matching private SSH key when trying to clone a repository

📋 View screenshot: Add your SSH Key to Gerrit

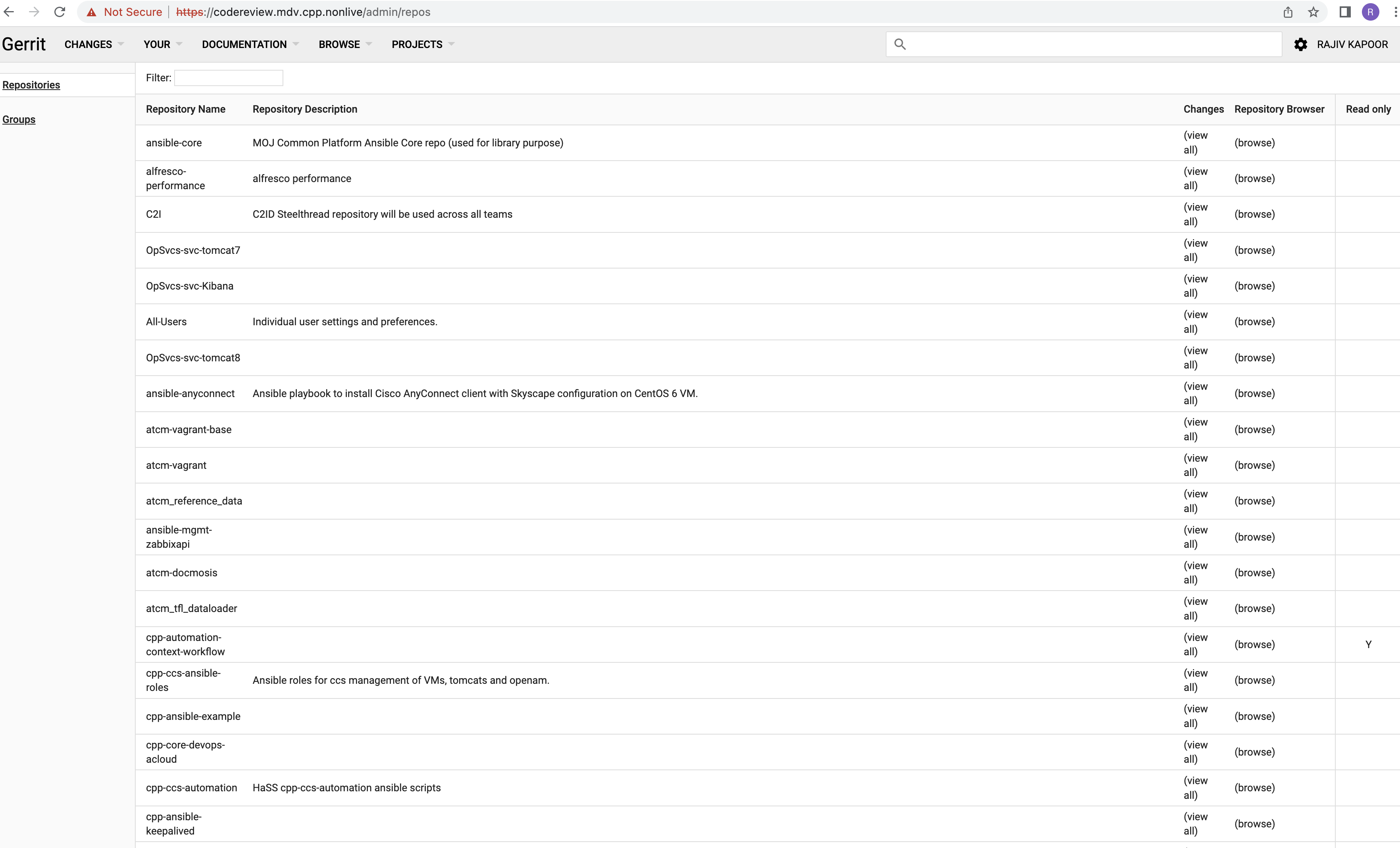

Browse Repositories

Log into Gerrit at https://codereview.mdv.cpp.nonlive/
Once logged in, click on Browse on the top menu bar
Then click Repositories from the top menu - you can search for repositories here (depending on your permissions you might not be able to see or clone all of them)

📋 View screenshot: Gerrit Repository search

Clone a Repository

Ensure your SSH agent is running and your private key is added to the keyring:

  # Check if ssh-agent is running
  eval `ssh-agent`

  # Add your key to keyring
  ssh-add

  # If your ssh key filename is diff to id_rsa
  ssh-add <PATH-TO-PRIVATE-KEY>

  # Check if your key is added to keyring
  ssh-add -l

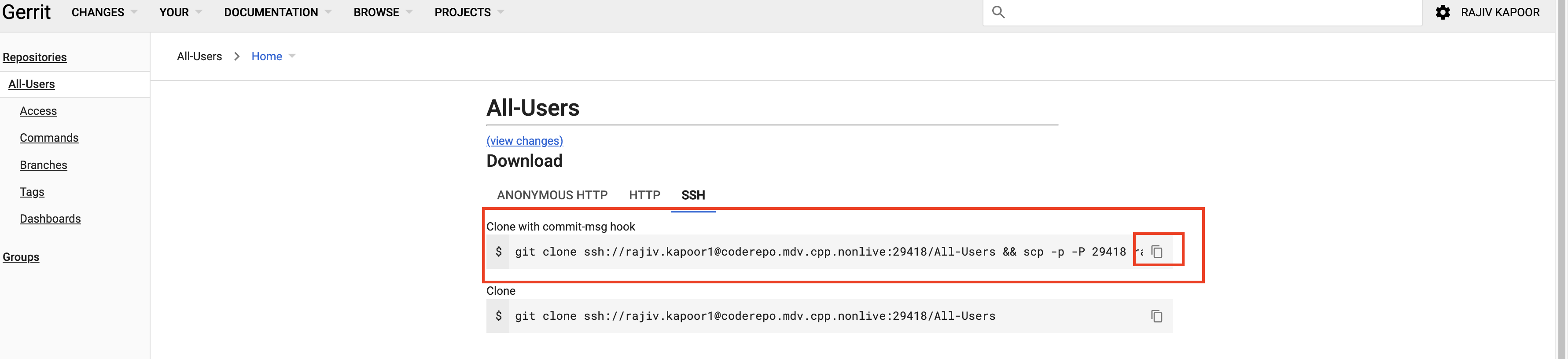

Find your repository on Gerrit and click on it
On the repository page under Download click SSH tab
Copy to clipboard the section under Clone with commit-msg hook
Paste it into your terminal

git clone ssh://demo.user@coderepo.mdv.cpp.nonlive:29418/opsvcs.general && \
scp -p -P 29418 demo.user@coderepo.mdv.cpp.nonlive:hooks/commit-msg opsvcs.general/.git/hooks/
